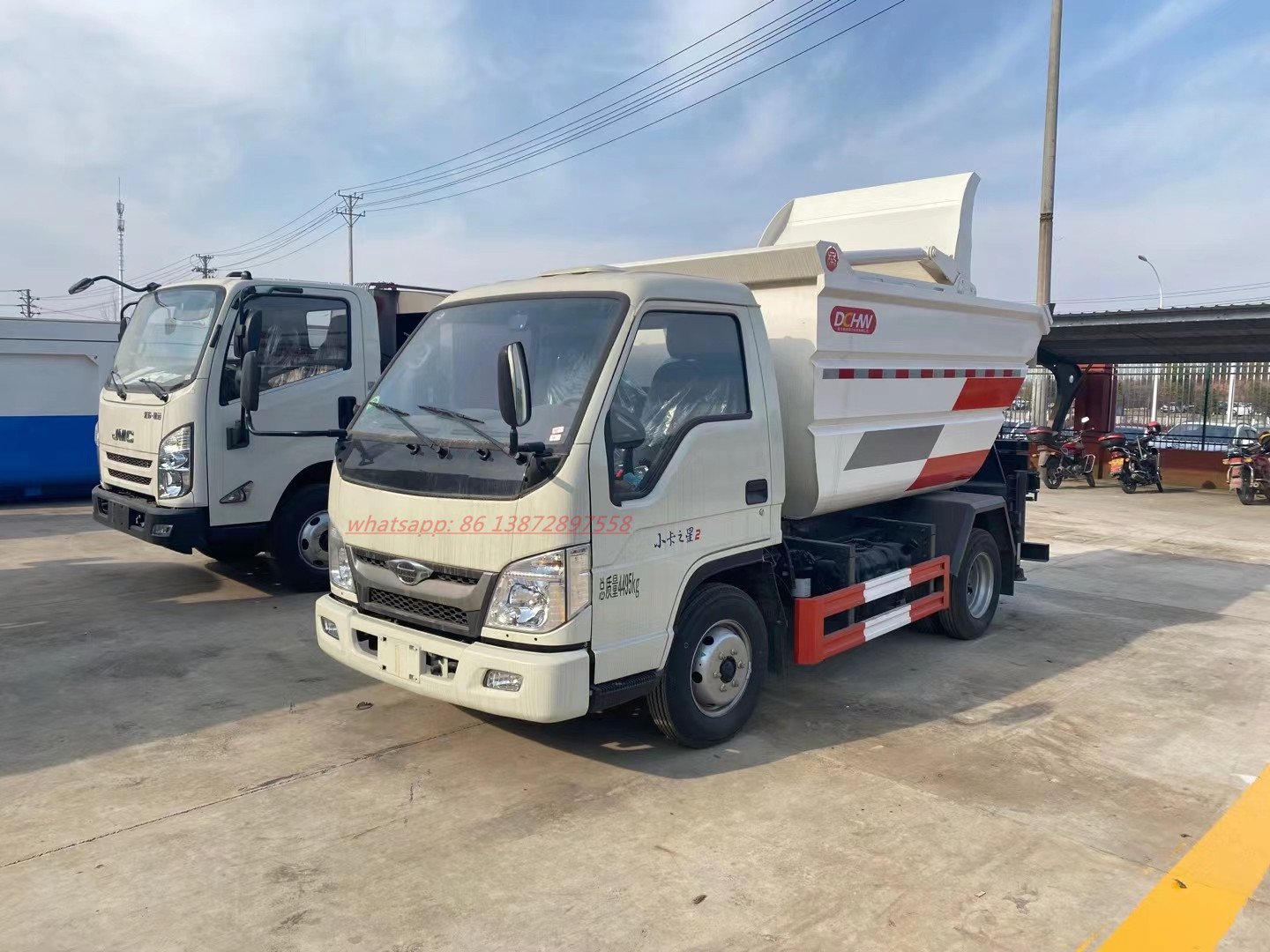

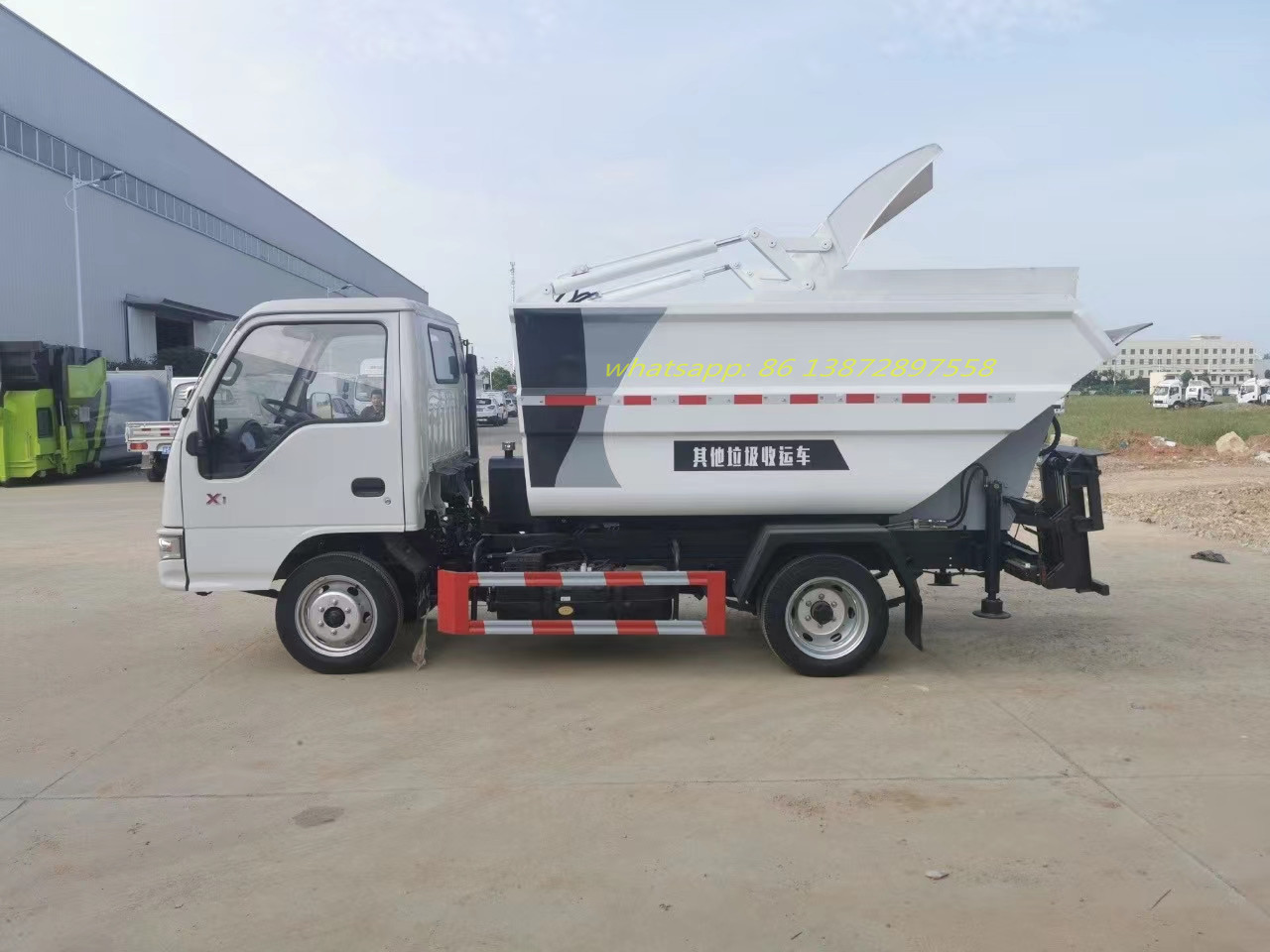

Foton Non-leakage self-handling garbage truck
Payment term: T/T, L/C , D/P
Delivery time: 15 Working days since get the Down payment.
After-sales service: For 1 year since leave factory
Shipping way: By container, RORO, Break bulk ship
Classification:
Share
Describe
| Item | Foton Non-leakage self-handling garbage truck |
| Overall dimensions | 5260x1860x2250mm |
| Wheelbase | 2850 mm |
| GVW | 4495 KGS |
| Pay load | 1065 KGS |
| Kerb weight | 3300 KGS |
| Engine | Quanchai engine, 115hp, Diesel |
| Emission | Euro 3, 4, 5, 6 |
| Transmission | Manual, 5 Forward speed+ 1 Reverse |
| Tire | 6.50R16, 6+1 |
| Steering | LHD / RHD |
| Garbage Tank volume | 3 cbm |
| Material | Q345 Manganese plate |
| Equipment |
Standard leakless ship type structure, with rear operation legs, with outfall, with PLC control (one-key operation), electric control limit induction system, with scraper compression, hydraulic cylinder, Yangzhou Zhongmei multi-way valve. Rear hanging up standard garbage bins. |
| Performance |
One cycle of discharge: ≦55s Scraper mechanism working cycle time: ≦38s Max. Hydraulic system pressure: 16MPa Control method: Electric |
