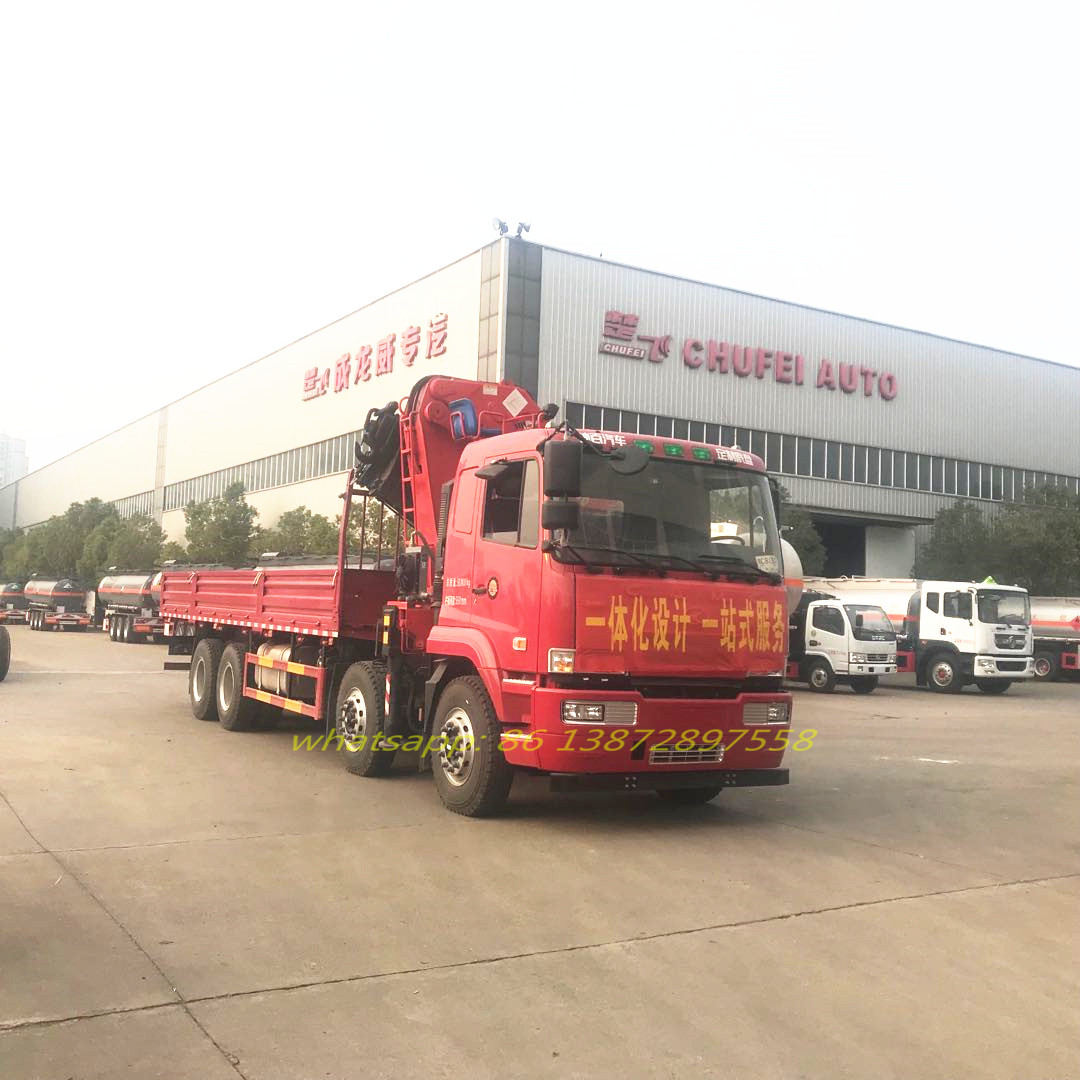

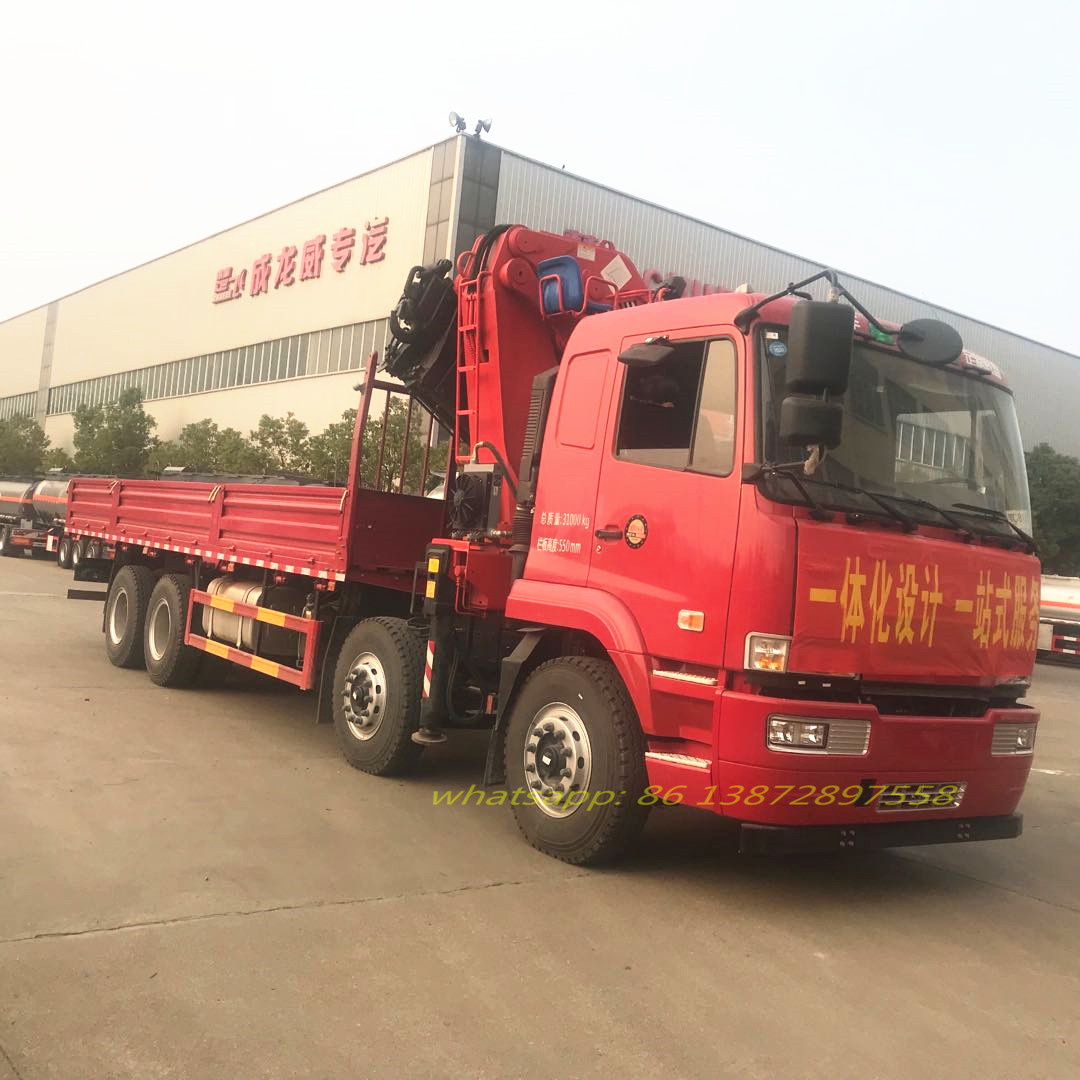

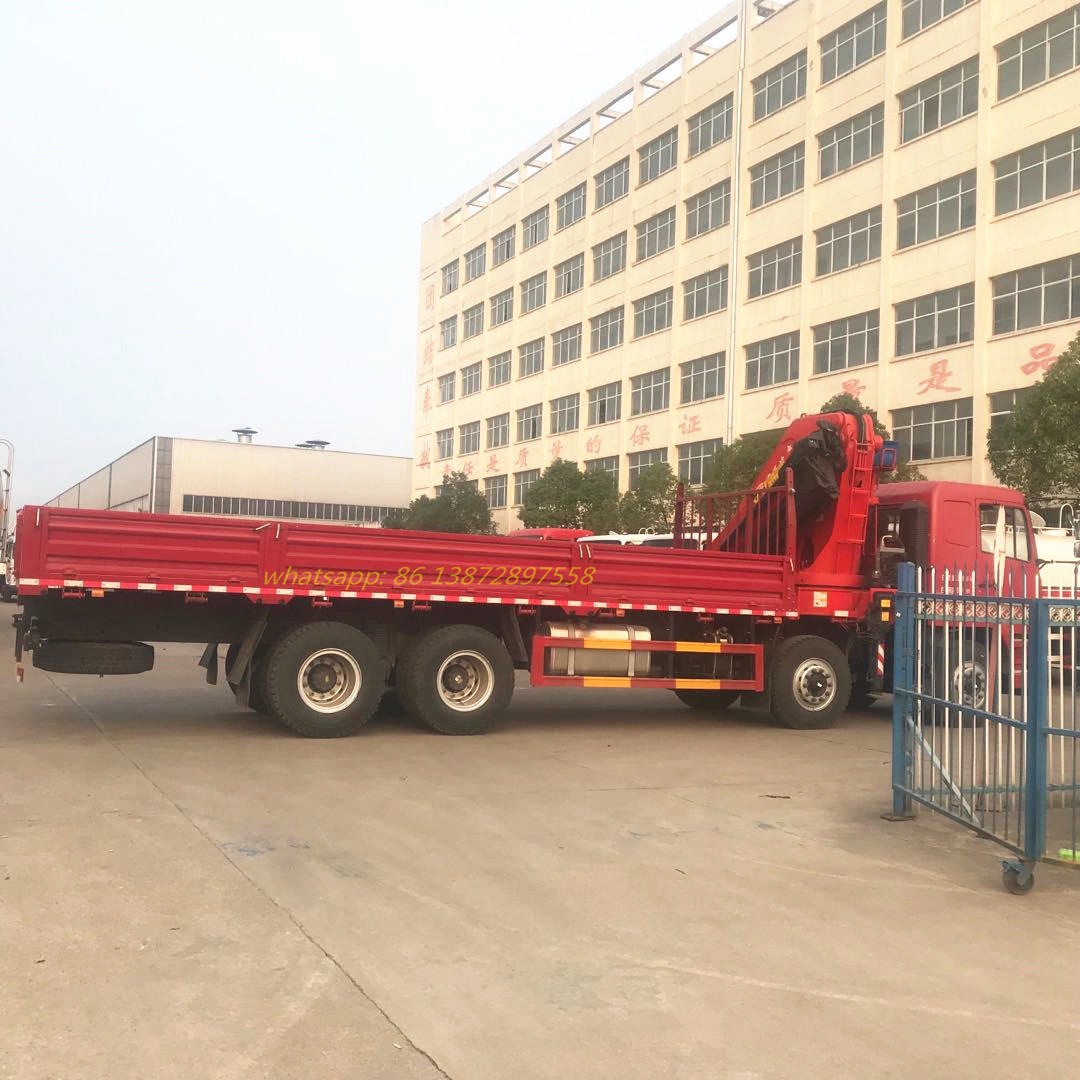

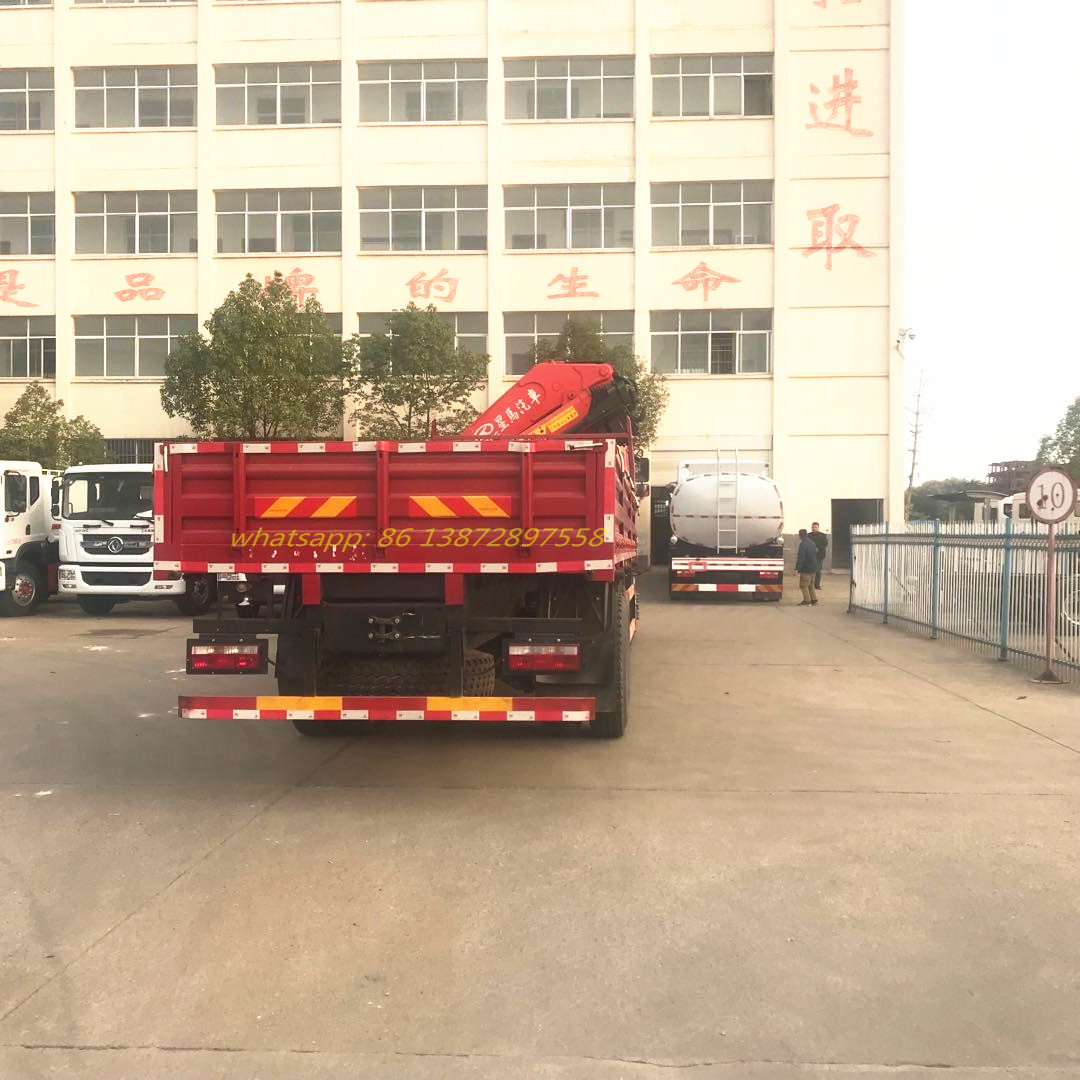

Sinotruk HOWO 8X4 truck mounted crane
Payment term: T/T, L/C , D/P
Delivery time: 15 Working days since get the Down payment.
After-sales service: For 1 year since leave factory
Shipping way: By container, RORO, Break bulk ship
Classification:
Share
Describe
| Item | Sinotruk HOWO 8X4 truck mounted crane |
| Overall dimensions | 12000x2550x3980mm |
| Wheelbase | 2100+4575+1400 mm |
| GVW | 31000 KGS |
| Rated load | 14000 KGS |
| Kerb weight | 16200 KGS |
| Engine | Weichai engine,350hp, Diesel |
| Emission | Euro 3, 4, 5, 6 |
| Transmission | Manual, 12 Forward speed+ 1 Reverse |
| Tire | 315/80R22.5, 12+1 |
| Steering | LHD/RHD |
| Box length | 9200mm |
| Crane |
20Ton, XCMG brand,SQZ600, Folding type, Lifting height: 20meters, Working radius: 16.8meters, Full hydraulic,full rotation, with upper air seat. |
| Option | Hydraulic single chamber or double chamber rear leg. |
